Because of the inherent limitations of visual feedback in a single color LED matrix (Monome), I’m starting work with
Adrian on developing an RGB Monome with pressure sensitivity. For now, I’ll focus on the multiplexing/de-multiplexing
process.

We chose the SparkFun button breakout available here:
http://www.sparkfun.com/commerce/product_info.php?products_id=8033 along with button-pads that they offer:
http://www.sparkfun.com/commerce/product_info.php?products_id=7835

For the management of the IO via Serial PWM, I’m planning on using Wiring; a board similar to the Arduino.
http://wiring.org.co/index.html The wiring board offers more pins, and doesn’t require familiar Arduino users to learn
another language.

Steps
Collect components and pieces together. Make sure that you have at least the following: >- 16 tri-color LEDs >- 16 diodes >- a soldering iron >- the breakout PCB >- the buttons >- a controller board >- a chip that will allow for simultaneous IO for sensing and feedback (e.g., MAX7219 or TLC5940 for feedback only) >- some time
Attachments

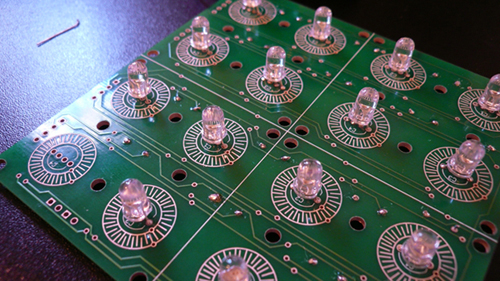

Image icon button-with-lights_0.jpg
